Back Support Exosuit with Fall Protection -PHES1D

EXO-SAFETY

QUICK VIEW

EXO Occupational Exoskeleton Back Support Exosuit with Fall Protection combines the benefits of a waist support Exosuit with elastic support belt fall protection safety belt and carrying belt. The material is wear-resistant weather-resi

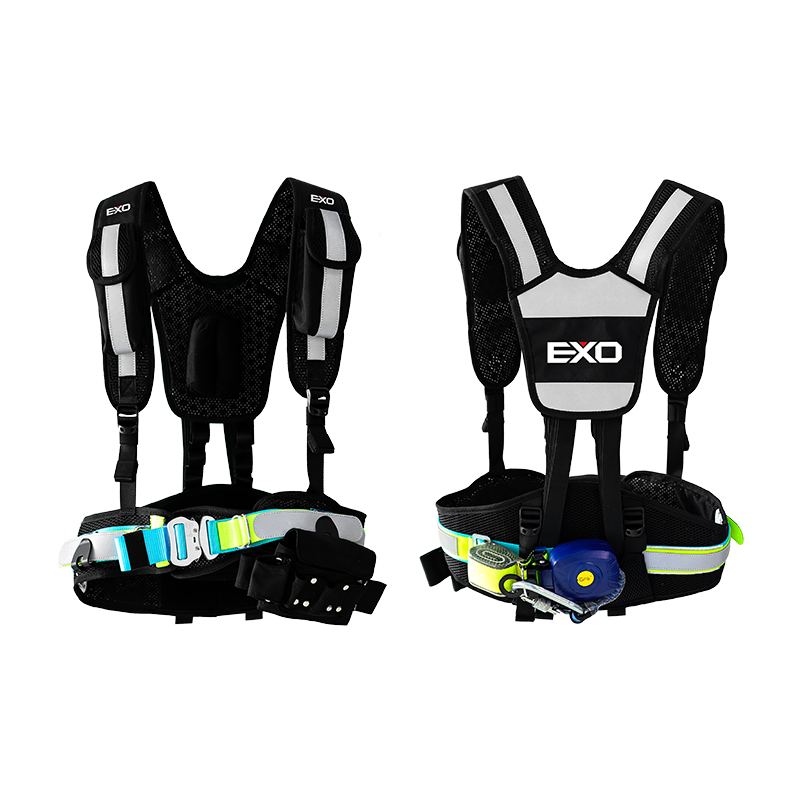

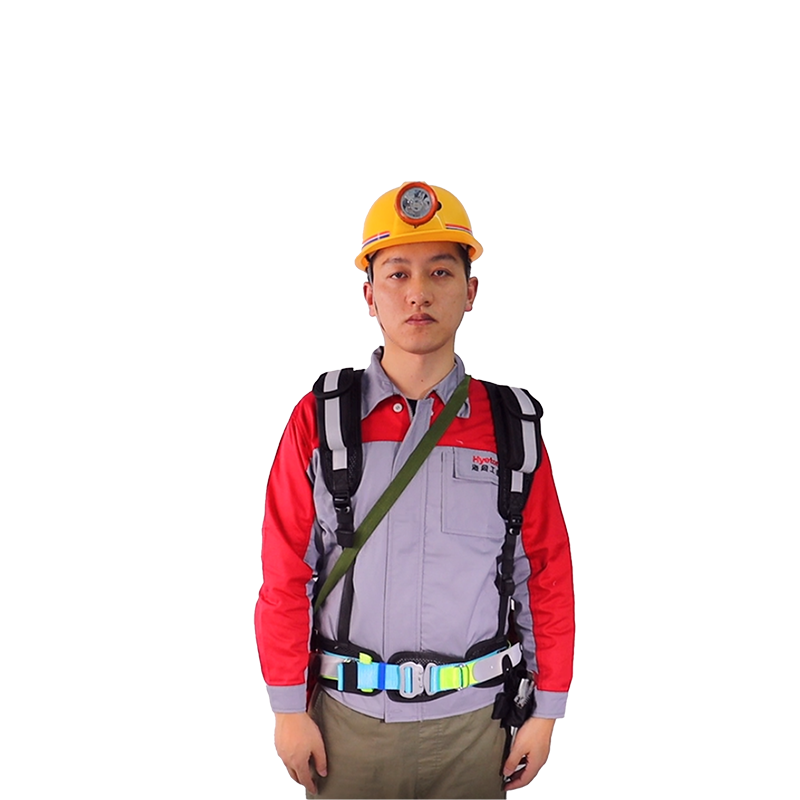

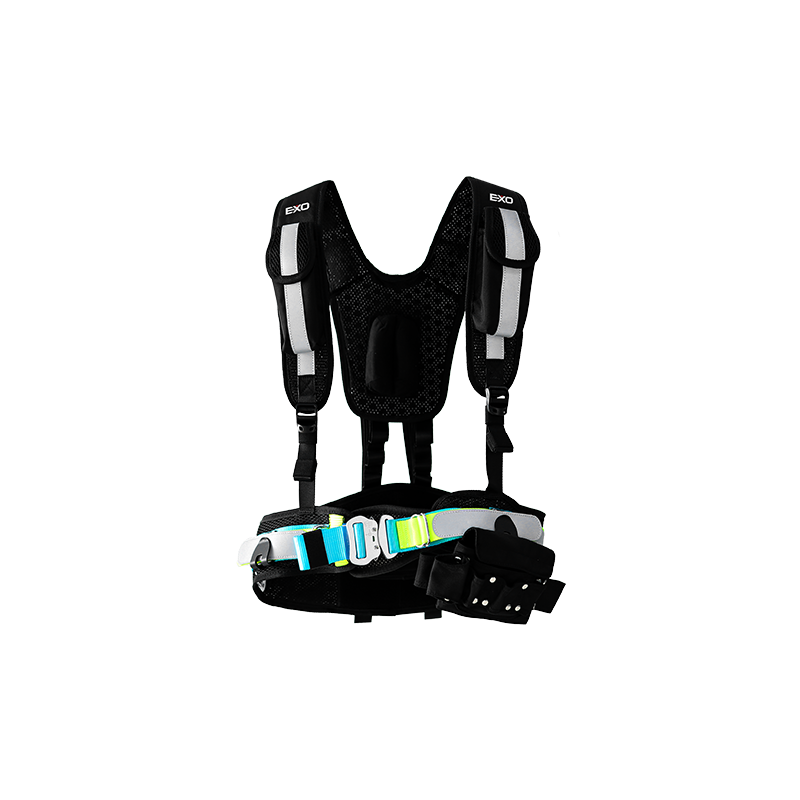

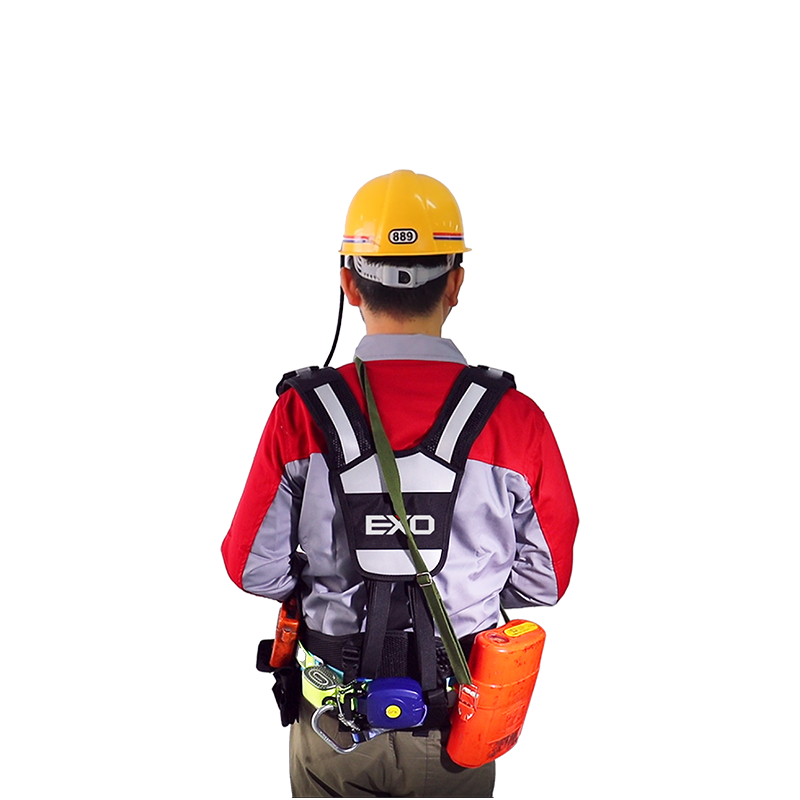

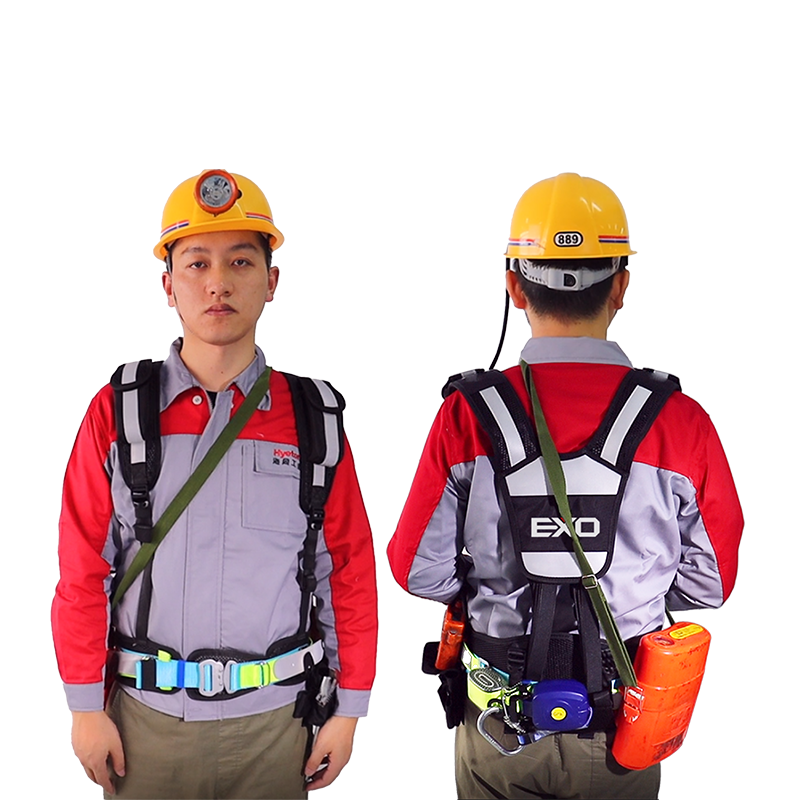

EXO Occupational Exoskeleton Back Support Exosuit with Fall Protection -PHES1D

  • EXO Occupational Exoskeleton Back Support Exosuit with Fall Protection combines the benefits of a waist support Exosuit with elastic support belt, fall protection safety belt, and carrying belt;
  • The material is wear-resistant, weather-resistant and impact-resistant, with reflective strips and a document holder;

Specifications

  • Wearer Height: 1.6-1.85 meters;
  • Wearer weight: 40-80Kg;
  • Service life: >300,000 times;
  • Donning doffing time: <10s;

Types of work suitable for

  • Aircraft manufacturing, underground mine operations, and environment with a large number of tools to carry and requires waist protection;

Consists of:

  • Waist protection belt, fall protection belt, back strap, elastic belt, waist belt, tools bags.



Detailed descriptions

  • Characteristics: Elastic belt for waist support;
  • Shoulder straps: built-in thick cotton lining, shoulder socket, distributes the force evenly;
  • The middle layer of the back panel is equipped with high-density Velcro to adjust the position of the elastic belts and the lumbar back cushions;
  • Elastic belt pulling force is adjustable. Maximum pulling force 15 kg;
  • Webbing for storage: anti-sway, prevent the shoulder strap from slipping off;
  • Characteristics:Waist Protection Exosuit;
  • Aviation aluminium O-hook - high-strength aviation aluminium, light in weight, not easy to corrode, tightened by a nut;
  • Fall arrest bag - When a fall occurs, the fall arrest bag automatically opens to reduce impact;
